      Workflow Triggers

      image-20200922-164536Overview

      A workflow trigger allows a workflow to run in response to an event. A workflow can have any number of triggers in addition to a schedule.

      Configuration

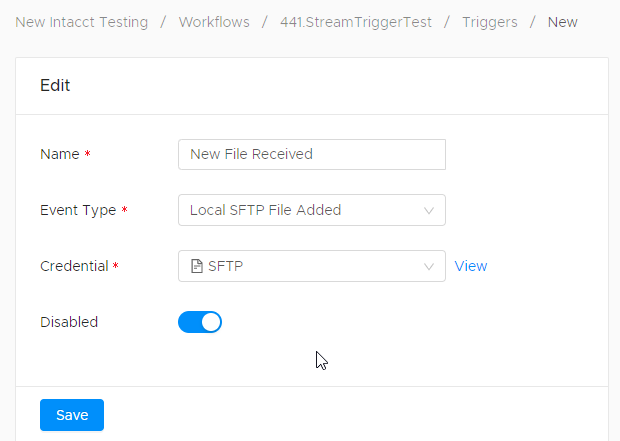

      Workflow triggers are configured from the Advanced tab of the workflow screen.

      Workflow trigger options are not displayed when configuring a new workflow. Save the workflow to see these options.



      1. Click Add to open up the new trigger edit form.

      2. Enter a descriptive name for the trigger.

      3. Select the Event Type.
        See Trigger Event Types.

      4. Set the appropriate sub option for the event type.

      5. If desired, disable the trigger until needed.

      6. Click Save.



      Trigger Event Types

      Event Type



      Description



      Qualifier



      Collection Completed

      Triggers the workflow when the specified collection completes successfully. If the collection completes with an error or warning, the workflow will not be triggered.

      The workflow will run regardless of how the collection itself is started (e.g. schedule, manual, as part of a workflow).

      Collector to watch.

      Local SFTP File Added

      Triggers the workflow when a new file is added to the DataBlend ftp server in the directory allocated to the selected credential.

      DataBlend local SFTP credential.

      See: Local SFTP Credentials

      Web Spreadsheet Update / Stream File Upload

      Triggers the workflow when the open stream of a data source schema is saved or when a new stream is created.

      Examples:

      • When a new row is added to an open stream of a single file schema and the stream is saved.

      • When a file is uploaded to a schema.

      Schema which will be updated.
