Overview The Workflow Wizard is used to build all the components needed for specific workflow use cases through a series of steps, e.g. Sage Intacct → BlackLine GL Account balances.
Prerequisites
In order to fully utilize the Workflow Wizard, credentials will need to be set up beforehand. This will need to include both source and target system connections. See the Credentials section for help on setting up credentials.
Configuration

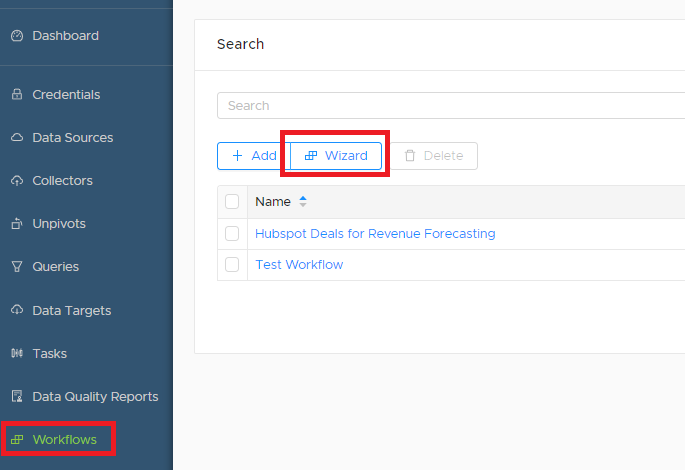

The Workflow Wizard can be accessed by navigating to Workflows and clicking the Wizard button
The Workflow Wizard will only display Sources and Destinations based on available plugins inside the DataBlend Group
The Wizard will then walk the user through a series of steps. Once all required fields have been selected in a given step, the user will then be able to move on to next step by clicking the Next button.
-
Select Type
|
Option |
Type |
Description |
|---|---|---|
|
Source |
Drop-down menu |
Select a data source from the list |
|
Destination |
Drop-down menu |
Select a data target from the list |
|
Type |
Drop-down menu |
Select from available pre-configured Wizard options |
2. Source Setup
|
Option |
Type |
Description |
|---|---|---|
|
New Datasource Name |
Free Text |
Enter a name for the Data Source |
|
Source Credential |
Drop-down menu |
Select the source credential that has been set up beforehand |
The remaining options will depend on the Source selected in step 1. These options could contain a combination of free text, drop-down or date fields.
3. Query Setup
These options will depend on the specific Wizard type selected in step 1. These could contain a combination of free text, drop-down or date fields.
4. Destination Setup
|
Option |
Type |
Description |
|---|---|---|
|
Destination Credential |
Drop-down menu |
Select the destination credential that has been set up beforehand (see: https://datablend.atlassian.net/wiki/spaces/DS1/pages/1196228684 ) |
The remaining options will depend on the Destination selected in step 1. These options could contain a combination of free text, drop-down or date fields.

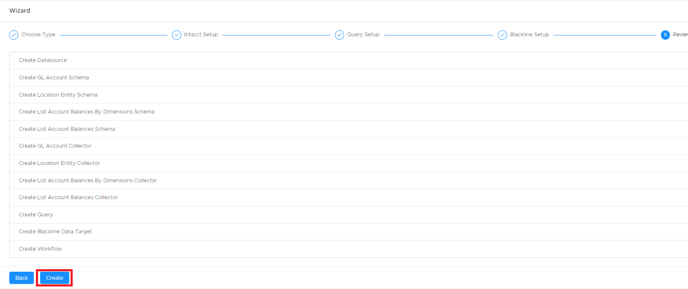

5. Review
The final step will display all of the elements that will get created in DataBlend based on options selected in the prior steps. Click Create to build all of these elements

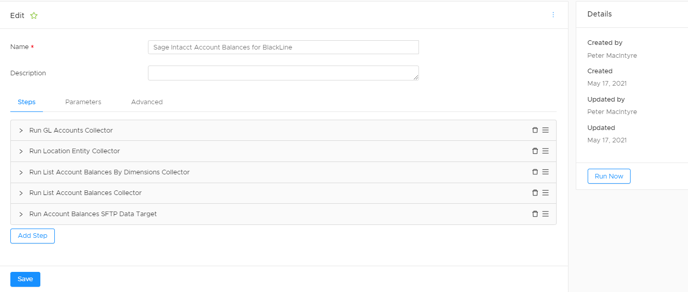

Once everything is created, the final Workflow is displayed. From here, the Workflow can be executed, scheduled or favorited.
